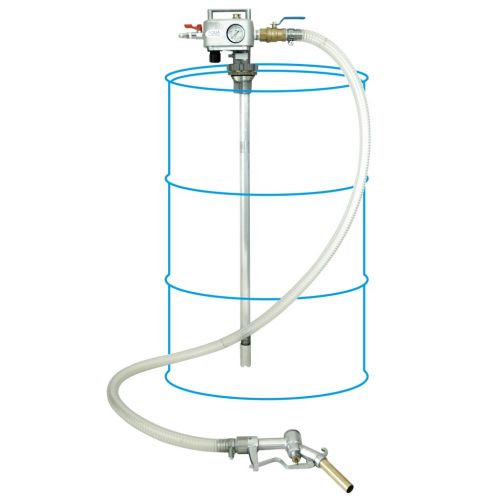

Delivery Mechanism
Compressed air of 0.1~1 MPa is let in.
Regulator is set to decompress air to 0.05 MPa.
Decompressed air enters into the drum can.
Air pushes the surface of the liquids inside of the can.
The pushed liquid enters into the suction pipe.
Liquid enters into the hose and goes out through the nozzle.
Specifications Table
| Types | APD-REX | APD-20(25)EX | APD-20(25)NEX | APD-20(25)GEX | APD-20(25)GNEX | APD-20(25)ASEX | APD-20(25)ASNEX | APD-20SUS EX | APD-20SUSN EX | |
| Function | Delivery | Delivery | Delivery | Delivery | Delivery | Delivery | Delivery | Delivery | Delivery | |
| Acceptable | General oil | General oil | General oil | Kerosene, Diesel, Gasoline | Kerosene, Diesel, Gasoline | Solvents | Solvents | Solvents, Acid and Alkaline liquids | Solvents, Acid and Alkaline liquids | |
| Partsmaterials | Body | AL | AL | AL | AL | AL | AL | AL | SUS304 | SUS304 |
| Packing | Fluoro-Rubber | Fluoro-Rubber | Fluoro-Rubber | Fluoro-Rubber | Fluoro-Rubber | Teflon, Fluoro-Rubber | Teflon, Fluoro-Rubber | Teflon, Perflu | Teflon, Perflu | |
| Hose | PVC (D25x2m) | PVC (D25x2m) | PVC (D25x2m) | Oil resistant rubber(D25x2m) | Oil resistant rubber(D25x2m) | SUS304 (D25x2m) | SUS304 (D25x2m) | SUS304 (D20x2m) | SUS304 (D20x2m) | |
| Maxdeliveryrate (L/min) | 1cP | 65 (150) | 65 (150) | 55 (80) | 55 (115) | 50 (70) | 35 (115) | 30 (70) | 40 | 35 |
| 500cP | 30 (60) | 30 (60) | 20 (40) | 20 (45) | 15 (30) | 15 (30) | 15 (30) | 15 | 10 | |
| 1000cP | 15 (25) | 15 (25) | 9.5 (20) | 7 (20) | 7 (15) | 6 (15) | 6 (15) | 5.5 | 5 | |
| Discharge Head | Max 2m | Max 2m | Max 2m | Max 2m | Max 2m | Max 2m | Max 2m | Max 2m | Max 2m | |
| Weight (kg) | 4.4 | 4.4 | 4.3 | 5.6 | 5.3 | 5.3 | 4.9 | 7.8 | 7.6 | |
